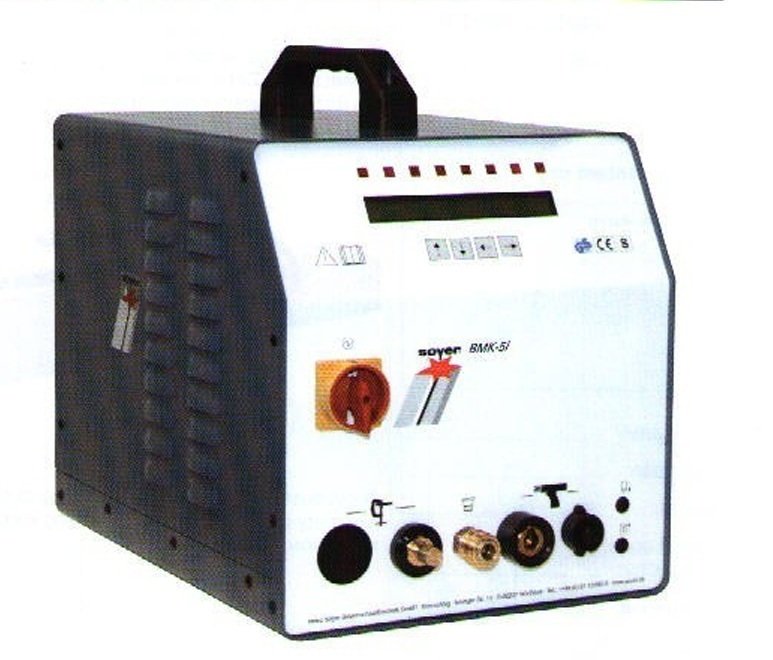

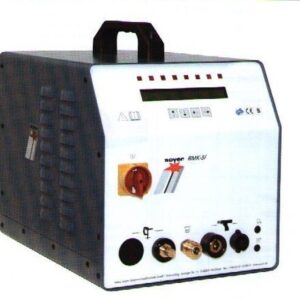

The Soyer BMK-5i inverter stud welder is a high-performance short-cycle drawn arc stud welding machine designed for precision and reliability. Built with advanced digital inverter technology, it delivers excellent thermal protection, fire safety, and sound insulation. The Soyer BMK-5i is ideal for demanding insulation and fastening applications in shipbuilding, power and heat supply stations, and industrial production environments, ensuring consistent weld quality and high operational safety.
Technical Specifications: –
| Stud Welding Process | Short-cycle drawn arc stud welding |
| Welding Range | M3 – M6 RD / Stud diameter 2 – 5 mm |
| Compatible Materials | Steel, stainless steel, heat-resistant steel (Aluminium conditionally, depending on requirements) |
| Standard Welding Gun | PK-3 stud welding gun |
| Welding Current | 80 – 200 A (stud welding, adjustable & regulated) 40 – 160 A (electrode welding) 40 – 100 A (TIG welding) |
| Welding Time | 3 – 1000 ms (stud welding) |
| Welding Sequence | Up to 50 studs/min (depending on stud diameter) |
| Power Supply | 1/N/PE AC 230 V, 16 A |
| Dimensions | (W × H × D): 335 × 415 × 490 mm |
| Weight: Approx | 21 kg |
Buy the Soyer BMK-5i inverter stud welding Machine M3 – M5 in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
