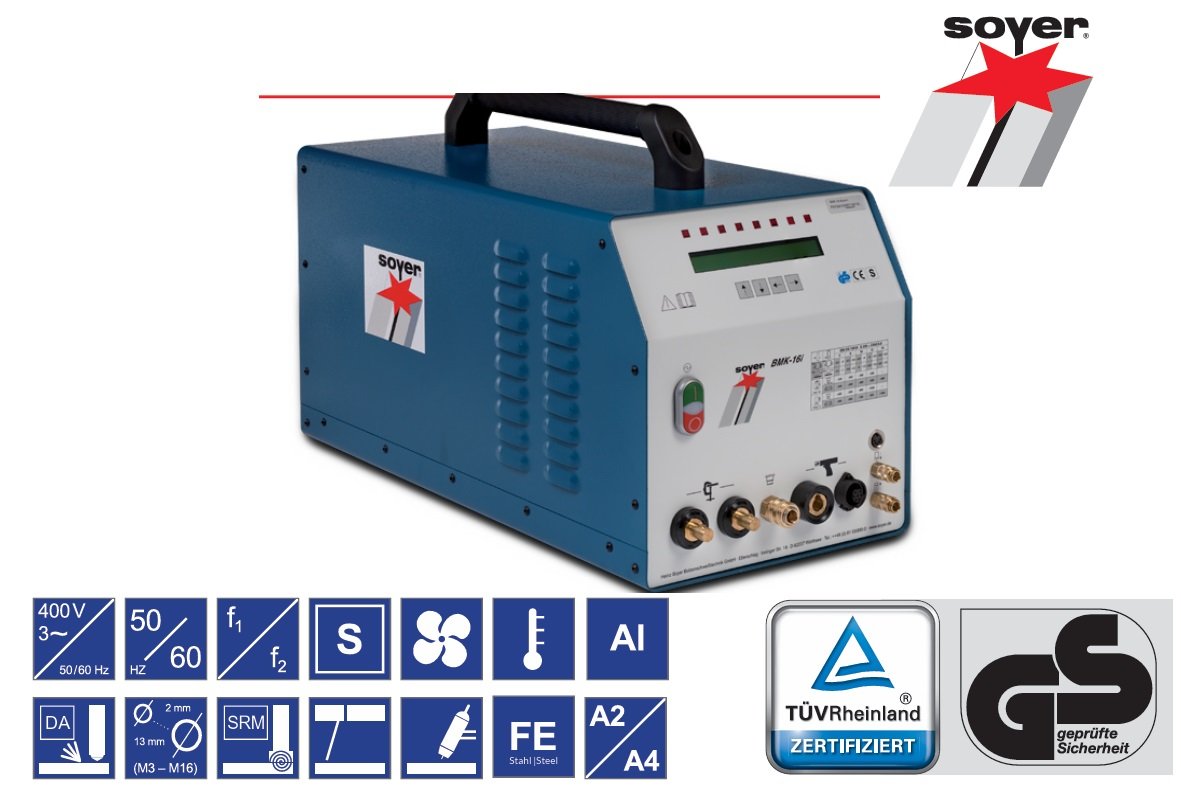

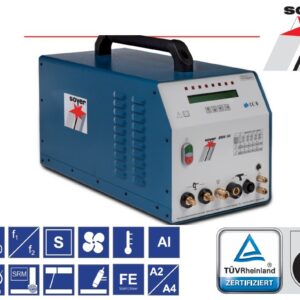

Soyer Stud Welding Machine – DA & SRM stud welder BMK16i
Product Description
The all-rounder BMK-16i with SRM® function is ideal for universal welding tasks up to M16. Owing to its multi-functionality, this tried and tested robust welding inverter is equally suited for different welding procedures such as stud welding, electrode welding and TIG welding.
Product Features
- Welding time and preweld current time variably adjustable.
- High clock frequency of 30 kHz.
- Integrated inert gas operation mode variably adjustable.
- Low connected load and low weight.
- Constant current controller (current fluctuation control).
- Option for semi-automatic and fully automatic stud feed.
- Interface for signal interchange with other external control systems.
- Self-protecting device in case of excess temperature or excessive welding sequence.
- Computer check on operability and simulated program run of all setting parameters on stud welder and gun without welding current.
- Table at the front panel showing standard values for all common stud types and diameters.
Technical Data – BMK16i
Welding range : M3 – M16 RD or 2 – 13 mm in diameter
Material : Steel, stainless steel, heat-resistant steel (Al and brass depending on respective requirements)
Welding current : 100 – 1000 A, adjustable and regulated with stud welding, 40 – 300 A, adjustable with
Electrode welding, 40-100A with TIG welding.
Welding time : 3 – 1000 ms with stud welding
Welding sequence : Ø 6 mm up to 30 studs/min | Ø 13 mm up to 3 studs/min
Mains supply : 3 x 400 V, 50/60 Hz, 32 AT, other voltage on request
Dimensions : 335 x 440 x 700 mm (w x h x d)
Weight : 36.5 kg
Welding Gun
PH-2 standard welding gun
PH-3N SRM16 welding gun for nut and stud welding using a magnetically moved arc
Buy the Soyer DA & SRM stud welder – BMK16i in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
