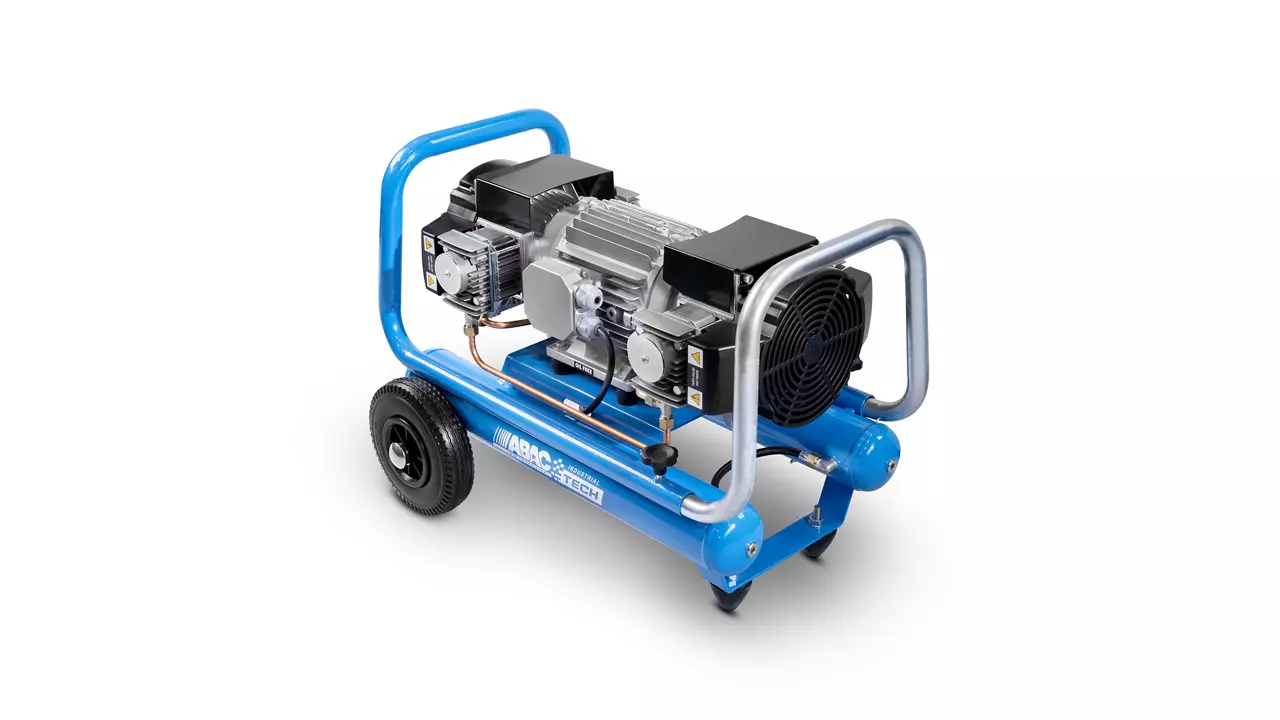

Silent 4116000869 Abac Tech ATF-S oilfree piston compressor – 4Hp – 10bar

Specification Value
Performance data
EAN Code 8024900731774
Max Pressure (Bar) 10 Bar
Max Pressure (Psi) 435
Pump speed 1400 Rpm
Vessel size (lt) 10 Liter
Vessel size (gal) 2,6 Gal
Configuration Mobile
Air Displacement (l/min) 430 l/min
FAD @Max pressure (l/min) 150 l/min
FAD @Max pressure (cfm) 5,25 Cfm
Lubrication Oil-free
Oil capacity n.a. Liter
Pump Element ATF-S 4
Motor (hp) 4 Hp
Motor (kw) 3.2 kW
Cylinders 4
Supply voltage 230 V
Frequency 50 Hz
Number of phases 1
Noise Level (LPA) 72 dB(A)
Noise Level (LWA) 92 dB(A)
Duty Cycle S1 100%
Maintenance overhaul 3000hrs
Dimensionals product
Weight 50 Kg
