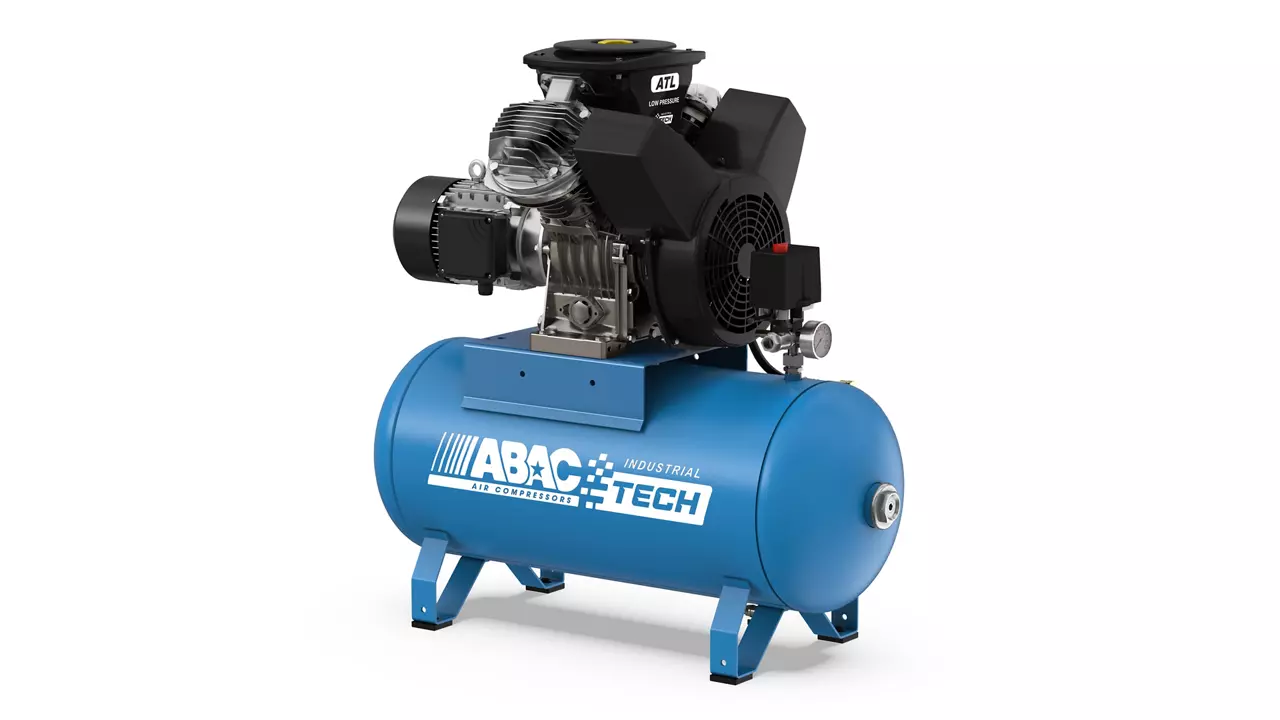

Piston Compressors 4116001432 Abac Tech ATL 2 Low Pressure continuous duty – 2hp, 10bar, 90lt vessel – 230v/50Hz/1phase

EAN Code 8024900729801
Max Pressure (Bar) 10 Bar
Max Pressure (Psi) 435
Pump speed 1500 Rpm
Vessel size (lt) 90 Liter
Vessel size (gal) 24 Gal
Configuration Stationary
Air Displacement (l/min) 408 l/min
FAD @Max pressure (l/min) 204 l/min
FAD @Max pressure (cfm) 7.21 Cfm
Lubrication Oil Lubricated
Oil capacity 1 Liter
Pump Element LE2
Motor (hp) 2 Hp
Motor (kw) 1.5 kW
Cylinders 2
Supply voltage 230 V
Frequency 50 Hz
Number of phases 1
Noise Level (LPA) 78 dB(A)
Noise Level (LWA) 98 dB(A)
Construction Industrial
Duty Cycle S1 100%
Dimensionals product
