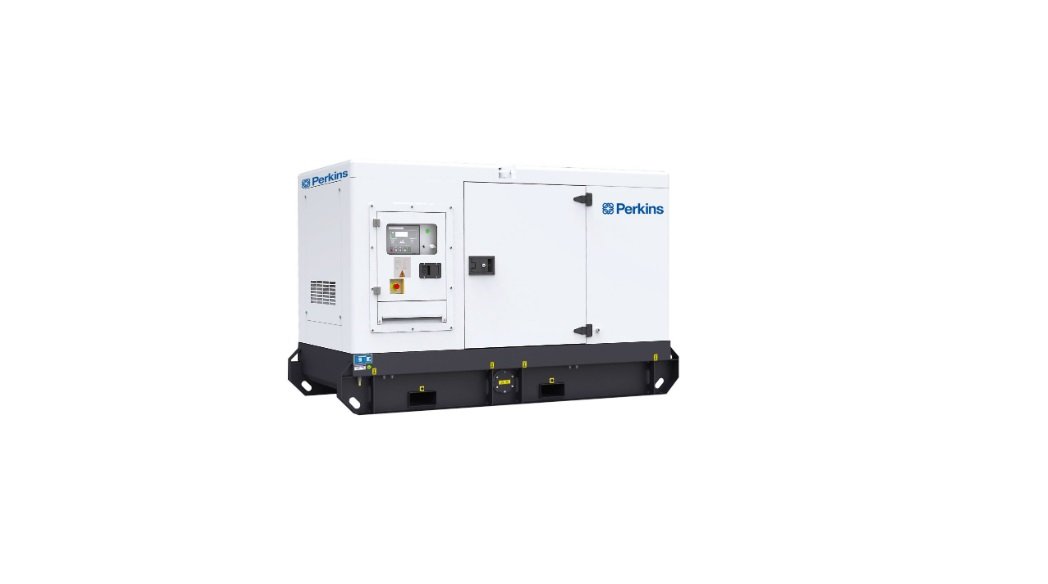

Perkins Diesel Generator Set Model: P45

Perkins Diesel Generator Set Model: P45
Output Ratings: –
380-415 V, 3 ph, 50 Hz, 1500 rpm
480 V, 3 ph, 60 Hz, 1800 rpm
Prime 45 KVA 36 KW
Standby 49.6 KVA 39.7 KW
480 V, 3 ph, 60 Hz, 1800 rpm
Prime 51 KVA 41 KW
Standby 56 KVA 45 KW
ENGINE Perkins four stroke heavy duty high performance industrial type diesel engine.
ENGINE FILTRATION SYSTEM
• Cartridge type dry air filter.
• Cartridge type fuel filter.
• Full flow lube oil filter.
All filters have replaceable elements.
COOLING RADIATOR Radiator and cooling fan, complete with safety guards, designed to cool the engine at high ambient temperatures (consult your dealer for de-ration factors)
EXHAUST SYSTEM Heavy duty Industrial Exhaust Silencer
CIRCUIT BREAKER TYPE ABB 3 pole MCB. (4 pole is optional)
Technical Data: –
Engine Make: Perkins
Engine Model: 1103A-33TG1
Governing Type: Mechanical
Number of Cylinders: 3
Cylinder Arrangement: Vertical in line
Bore and Stroke mm: 105 x 127
Displacement / Cubic Capacity litres: 3.3
Induction System: Turbocharged
Cycle: 4 stroke
Combustion System: Direct Injection
Compression Ratio: 17.25:1
Rotation: Anti-clockwise, viewed from flywheel
Cooling System: Water – cooled
Frequency and Engine Speed: 50Hz & 1500rpm 60Hz & 1800rpm
Alternator: Leroy Somer TAL 042F
