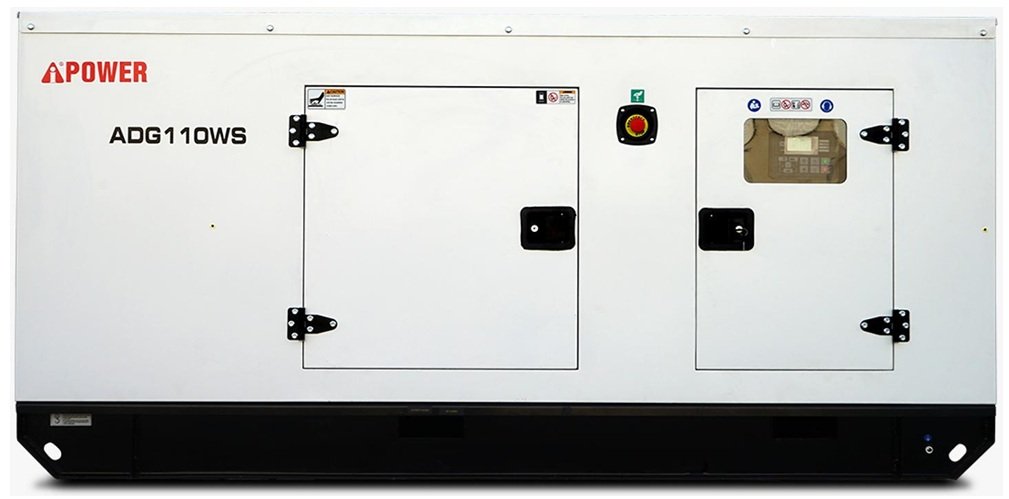

ADG110WS Diesel Silent Generator – 100 kVA Prime / 110 kVA Standby
The ADG110WS diesel silent generator, offered by Adams Tool House, is engineered to deliver reliable performance for continuous and standby power applications. Powered by a Weichai four-stroke heavy-duty industrial diesel engine and paired with a Senci high-performance alternator, this unit ensures stable and efficient output for demanding environments.
Its advanced cooling system, featuring a high-capacity radiator and cooling fan, provides optimal operation even at high ambient temperatures. The generator includes a heavy-duty industrial exhaust silencer for reduced noise levels and comes with an integrated fuel tank that delivers up to 8 hours of runtime at full load.
Each unit supplied by Adams Tool House undergoes strict factory load testing to ensure quality and performance before dispatch.
Technical Specifications: –
| Prime Output | 100KVA / 80kW |
| Standby Output | 110KVA / 88kW |
| Rated Voltage（V） | 400V |
| Max Current Output（A） | 144 |
| Rated Frequency（Hz） | 50 |
| Power Factor | 0.8 |
| Protection Class | IP33 |
| Engine Make | WEICHAI |
| Engine Model | WP4.1 D 1 OOE200 |
| Rated Power / KW | 100 |
| Starting System | Electrical Start |
| Combustion Chamber System | Direct Injection |
| Number of Cylinders | 4 |
| Displacement (L) | 4.087L |
| Fuel Tank Capacity (L) | 126L |
| Oil Capacity (L) | 13L |
| Fuel Consumption 100% Load (L/H) | 16Hrs |
| Speed Adjust Method | Electron Speed Regulator |
| Induction System | Naturally Aspirated |
| Cooling System | Water Cooling |
| Alternator Model | 274C |
| Rated Power (KW) | 80 |
| Rated Speed（r/min） | 1500 |
| Insulation Class | Class H |
| Mode of Connection | Three – Phase Four – Wire, Y – Type Connection |
| Mode of Adjust | AVR（Automatic Voltage Regulator） |
| Frequency | 50Hz |
| Control Panel | LED/DC42D |
| Monitoring Content of Diesel Engine | Oil pressure, water temperature, engine speed, battery voltage, frequency |
| Packaging Dimension (L*W*H,mm) | 2750x1000x1370 |
| Gross Weight (Kgs) | 1450Kgs |
Buy the AiPOWER ADG110WS DIESEL SILENT GENERATOR 100KVA PRIME / 110KVA STANDBY in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
