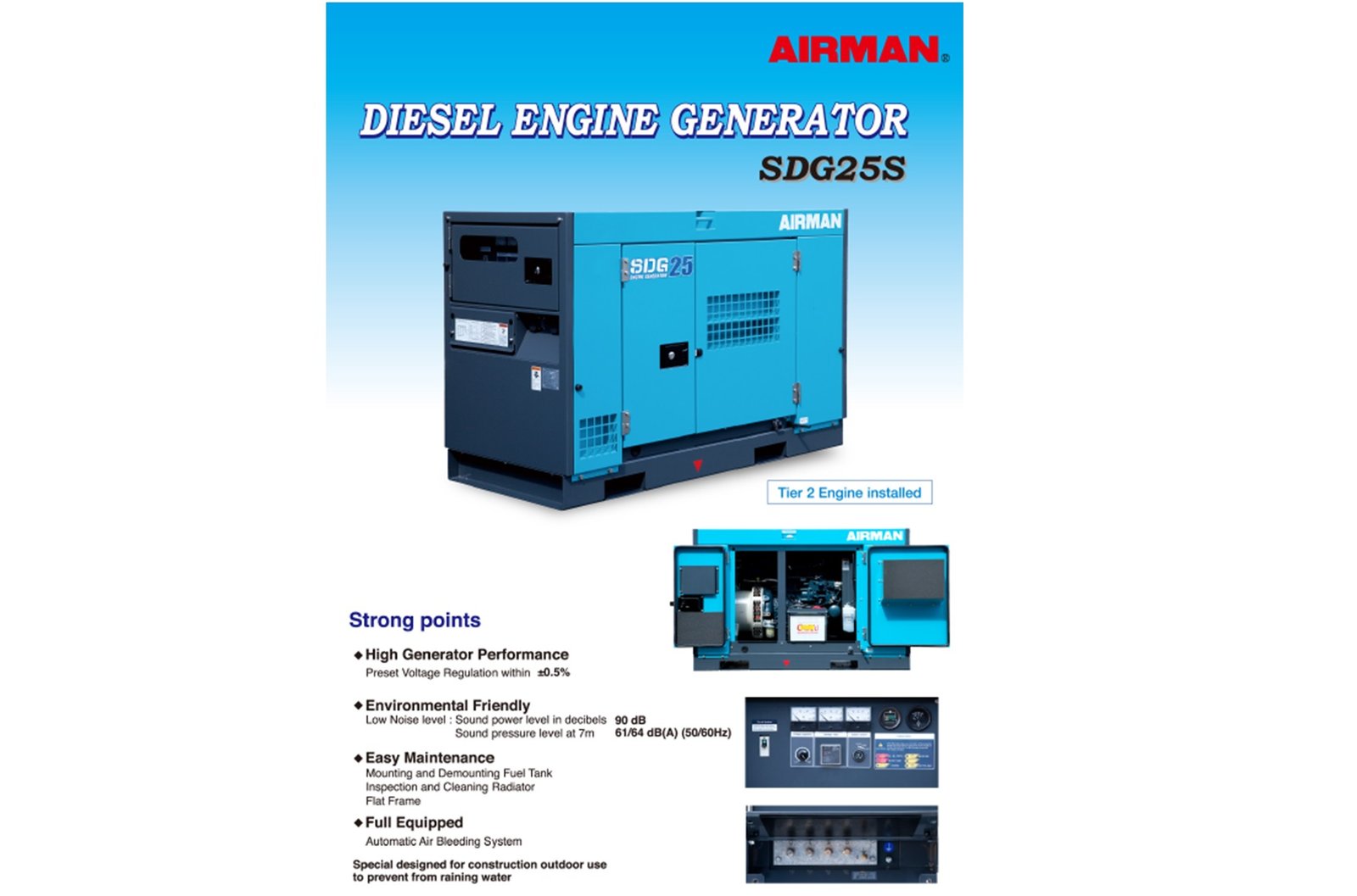

AIRMAN DIESEL GENERATOR SILENT TYPE MODEL SDG25S

SDG25S-3A8N

Specification : GENERATOR

Type : Single Voltage

Frequency (Hz) : 50 / 60

3-phase 4 wires

– Prime Output (kVA) : 20 / 25

– Stanby Output (kVA) 22 / 27.5

– Voltage (V) -400 / 440

– Current (A) – 28.9 / 32.8

Single-phase auxiliary output

– Voltage (V)

–

– Dedicated terminals (kVA)

–

– Outlets (kVA)

–

Power factor (%)

3-phase 80 (lagging) / Single-phase 100

ENGINE

Model

KUBOTA V2403-E2B

Type : Swirl Chamber

Rated output (kW) – 19.1 / 23.7

Rated output (PS)- 26 / 32.2

Rated speed (min-1) 1500 / 1800

Fuel tank capacity (L) 70

Lubricating oil capacity (L) 9.5

Battery×quantity – 80D26R 12v ×1

DIMENSION & WEIGHT,

L×W×H (mm) – 1550×700×1010

Dry weight (kg) – 625

Operating weight (kg) -695

Sound power level in decibels (dB) – 88 / 92

Sound pressure level (dB[A]) – 61 / 64

Designated emissions regulation -JPN Stage 2

●Specifications are subject to change without notice.
