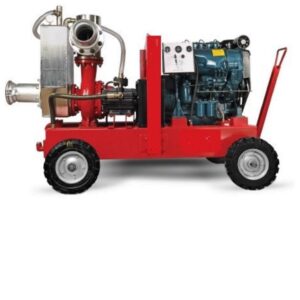

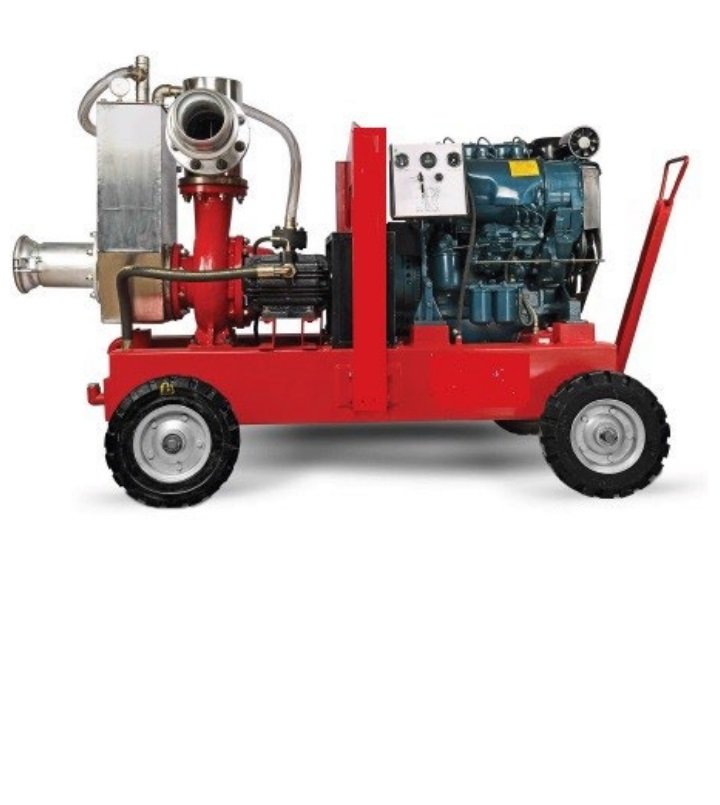

Our 6” dewatering pumps are ideal for a variety of applications, including dewatering, over pumping sewage, drainage, irrigation, and chiller plant operations. The pump features a 150 x 150 mm suction and discharge, equipped with a closed impeller and mechanical seal. An open impeller option is also available.
The priming tank is constructed from Mild Steel or Stainless Steel, with an aluminum option for enhanced versatility. Internal components, including Teflon and Stainless Steel parts, are designed to boost both the lifespan and efficiency of the pump. The volute casing, made from durable cast iron (or stainless steel upon request), is shaped to maximize discharge performance. Key internal parts like the shaft, impeller, and stuffing box are all crafted from stainless steel for enhanced durability and corrosion resistance.
Features and Benefits:
Low Maintenance: Routine checks are limited to oil levels and filters, ensuring minimal upkeep.
Versatile Use: Capable of handling sewage, slurries, and liquids containing solids up to 2.0” in diameter.
Advanced Sealing: High-pressure liquid bath with a double mechanical seal made of solid silicon carbide, offering superior resistance to abrasion.
Powerful Design: This centrifugal pump features a Dri-Prime system, powered by either a diesel engine (Kirloskar HA 394 engine) or an electric motor.
Technical Data: –
| Pump Make | ATR |
| Pump Model | ATR 150 |
| Vaccum Capacity | 70 cfm |
| Max Water Flow | 350 m3/hr |
| Suction x Discharge | 6” x6” (150 mm x 150 mm) |
| Max. Head | 40 mtr. |
| Max. Suction lift | 9 mtr |
| Max. Solid handling | 2” |
| Engine: | KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine |
| Capacity | 38 HP |
| Speed | 1800 RPM |
| Starting | Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shutoff, Wire Harness & Starting Panel. |
| Volute Housing | High Grade cast Iron |
| Pump Shaft | Stainless steel, SS – 304 |
| Impeller | Stainless steel, SS – 304 |
| Stuffing Box | Stainless Steel, SS – 304 with Double Mechanical seal immersed in oil bath for better efficiency & longer durability |
| Priming Tank | Mild Steel |
| Mounting | Portable Four-wheel chassis with built in fuel tank having a fuel Capacity of 160 liters |
| Weight without engine | 550 kg |
| Weight with engine | 950 kg |
| Length x width x height | 214 x 213 x 153 (cm) |
| Fits in 20 feet container | 6 nos. |
| Fits 40 feet container | 12 nos. |
Buy the 6” Dewatering Pump in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
