Application & Features
- Electrofusion is suitable for connecting PE pipes and fittings with coupling which are used for gas and water supply. Designed according to ISO9001:2008 electro-fusion welder international standard.
- High-level MCU is used as control core, equipped with LCD display, all welding parameters could be displayed.
- Built-in memory, can record more than 500 welding records. Welding records could be downloaded to USB flash disk via the USB interface (optional function).
HDM315 Specifications
| Welding range (mm) | 20mm – 315mm |
| Input voltage | 190V – 240V |
| Working frequency | 40 – 60HZ |
| Output power | 3KW |
| Output voltage | 10V – 48V |
| Control type | Constant Current / Constant Voltage |
| Time adjust range | 1 – 9999 seconds |
| Time deviation | ≤1% |
| Relative humidity | ≤80% |
| Overall weight | 20 KGS |

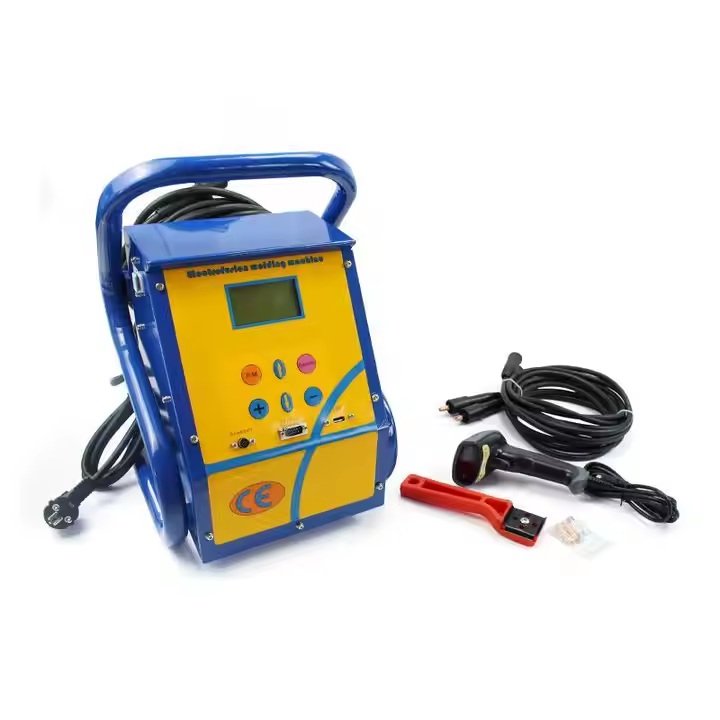

Buy the UPOWER HDM315 ELECTROFUSION WELDING MACHINE 20-315MM in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
