TCU and TCO
Container lifting lugs
Capacity 32000 – 56000 kg
TCU and TCO
Container lifting lugs
Capacity 32000 – 56000 kg
The lugs serve as flexible attachment points for the
transport of containers. Two types are available which can
be fastened to either the “top” or to the “bottom” of the
container.
These container lifting lugs are offered in a set of
4 pieces.

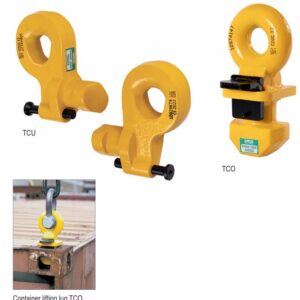

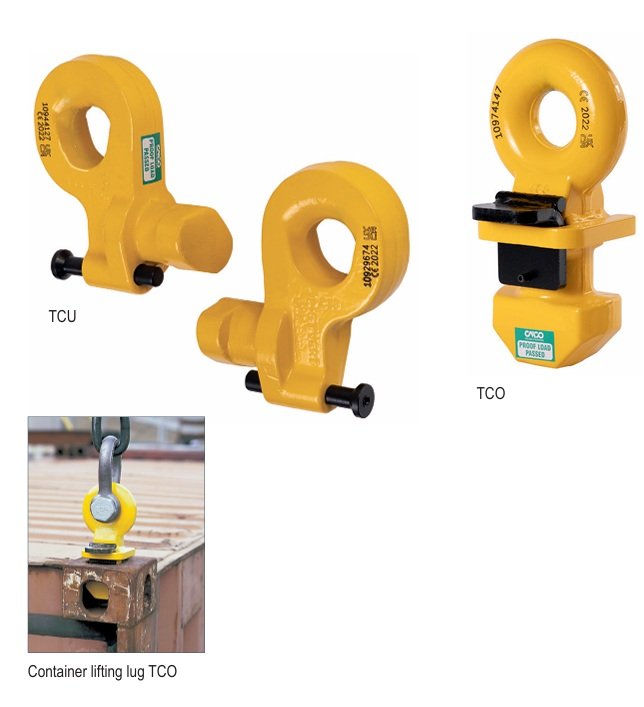

TCO
TCO is vertically mounted in the hole at the top of the
container. Turning the TCO 90°, locks it securely in place.
Transport is done with the use of a spreader beam in
conjunction with wire rope, chain or textile slings making
sure the load is suspended vertically.
TCU
TCU is laterlay mounted at the bottom fixing hole on the
container and has a spring-loaded bolt to prevent an
accidental release.
Technical data TCO and TCU
| Model | Art.-No. | Capacity ¹ Kg | Weight ¹ Kg | Sling angle from vertical |
| TCU 32 | N53508014 | 32000 | 19.5 | 50° |
| TCU 40 | N53508014 | 40000 | 19.5 | 36° |
| TCO 56 | N53508016 | 56000 | 30.1 | vertical |
| ¹ set of 4 pieces |
Buy the Tigrip TCU and TCO Container lifting lugs in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
