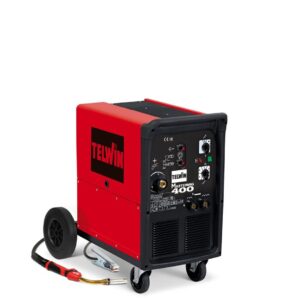

TELWIN MASTERMIG 400

MASTERMIG 400

MIG-MAG/FLUX/BRAZING welding machine with removable wire feeder, fit for use in the industrial field.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Features:
– Very strong
– Numerous steps for regulation of arc voltage
– Regulation of spot welding time
– Two positions for reactance
– Thermostatic protection
Thanks to the extensions (optional) it is possible to increase the working range between wire feeder and power source up to 10 meters.
Complete with MIG-MAG welding accessories.

• MIG-MAG/BRAZING, 400A wire welding machine. 3ph 230/400V power supply. With MIG-MAG welding accessories.
• High number of adjustment steps of the arc voltage. Spot welding time adjustment. Two reactance positions.
• Thermostatic protection.
• Extremely strong.
• Use of extensions (optional) possible to increase the distance between the wire feeder and generator up to 10m.

CODE  : 827004

THREE PHASE MAINS VOLTAGE : 230 / 400 V

MAINS FREQUENCY : 50 / 60 HZ

CURRENT RANGE : 50 – 400 A

MAX CURRENT : 400 @ 25 % A

DC CURRENT : 240 A

MAX NO LOAD VOLTAGE : 45,5 V

MAX ABSORBED POWER : 20 KW

ABSORBED POWER AT 60% : 10 KW

POWER FACTOR : 0,9

ADJUSTMENT POSITIONS : 18

STEEL WELDING WIRE DIAMETER : 0,6 – 1,6 MM

INOX WELDING WIRE DIAMETER : 0,8 – 1,6 MM

ALUMINIUM WELDING WIRE DIAM : 0,8 – 1,2 MM

FLUX CORED WELDING WIRE DIAM :1 – 1,2 MM

BRAZING WIRE DIAM : 0,8 – 1,2 MM

PROTECTION DEGREE : IP22

DIMENSIONS : L 94,5 X W 56,5 X H 83 CM

WEIGHT : 104 KG

Buy the TELWIN MASTERMIG 400 in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
