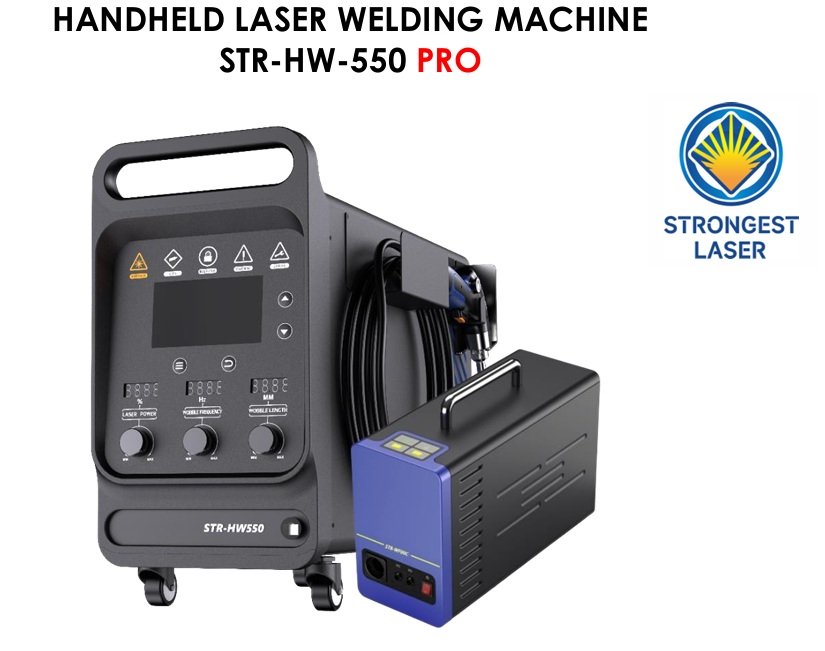

Redefining the Performance of Laser Welders – Engineered for precision and efficiency, this advanced laser welding machine delivers larger penetration and more stable operation, ensuring superior welding quality across applications. Designed for productivity, it offers faster welding speed, extended life cycle, and maximum uptime, making it an ideal choice for industries seeking reliability and high-performance welding solutions.
Technical Specs: –
| MODEL | STR-HW-550 PRO |
| Rated input power supply | Single- phase 220V |
| Input Power Frequency | 50/60Hz |
| LASER POWER | 2000W |
| PEAK POWER | 3000W |
| Guide beam | Class 1 Red Guide Beam |
| Laser Type (Welding Mode) | Ytterbium Continuous Wave 1070nm Fiber Laser |
| Wavelength | 1080nm |
| Spot size | 14µm |
| Wobble length | 5mm |
| Cooling | Dual- circuit refrigerant direct cooling |
| WELD PENETRATION (SINGLE SIDE) |
ALUMINIUM ≤ 8mm STAINLESS STEEL ≤ 8mm CARBON STEEL ≤ 8mm GALVANIZED SHEET ≤ 8mm BRASS ≤ 5mm MILD STEEL ≤ 8mm |
| Process Gas | Argon, Nitrogen, Helium, Compressed Air |
| Applicable Wire Diameter | 0.8/1/1.2/1.4/1.6mm |
| Working Temperature | -20 ~ 60°C |
| Safety | Class 4 laser device, standard ANSI Z136.1 safety precautions. System features include key for laser ON/OFF, 2-step laser operation trigger (Enable and Fire), part- head contact safety circuit, facility door interlock circuit. |
| Storage Temperature | -30 ~ 70°C |
| Working Humidity | 0-90% |
| Product Dimensions | 673 x 605 x 310 mm |
| Weight | 45kg |
Buy the STR-HW-550 PRO HANDHELD LASER WELDING MACHINE in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
