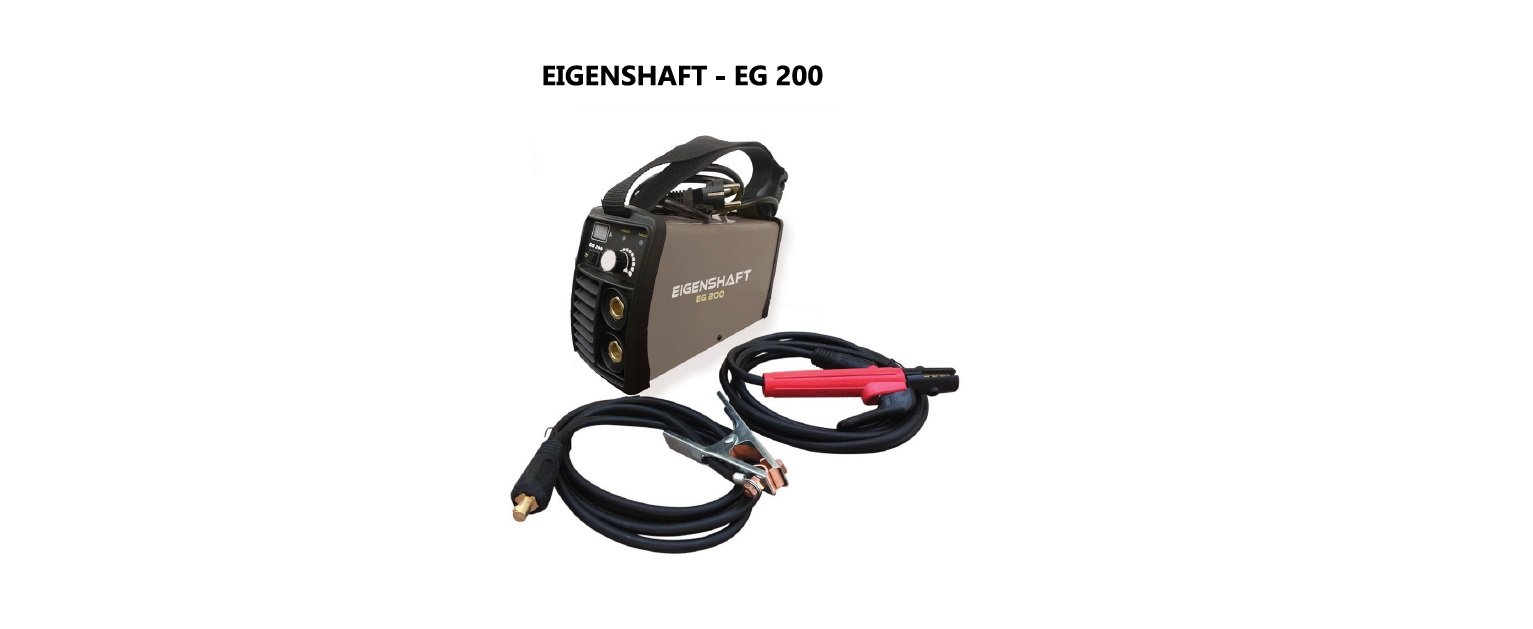

MMA Welding Machine EG 200 Eigenshaft

MMA WELDING MACHINE

EIGENSHAFT EG-200

This machine is the latest evolution in inverter technology generators for welding.

The most advanced materials and components have been used to design and produce it.

Features

• Very easy striking, constant arc and very low electri cal input  from the main supply by the welder
• Anti-electric shock system in output voltage circuit to protect welder against electric hazards
• Stability of the inverter against current variations to weld with very long electric cables
• Selector with 2 weld procedures
• Basic electrodes with “Hot Start” and ”Arc     Force Device
• TIG welding with thermal controlled (TCS) “lift”  type striking reducing tungsten inclusions to a minimum   and also allowing to weld on sharp edges
• Using cam switch instead of push button and extra life for input
• High frequency power INVERTER with very latest type of IGBT
• Using 35-50 mm2 welding connector ensures the cable of other welding machines be connected
• The generator also complies  with  all  European Union  standards and directives  in force
• Designed according to International  Standards  CE,IEC, ISO

Accessories

• Electrode holder 4mtr, earth clamp 3mtr. (high quality welding cable 25mm)

Optional Accessories

• TIG Torch
• Auto-Darkening Welding Helmet

TECHNICAL DATA

• Current Range                                                          5 – 200 A
• Max Current at Min Duty Cycle (40°C)                          200 A
• Welding Current at 35% Duty Cycle (40°C)                  200 A
• Welding Current at 60% Duty Cycle (40°C)                  150 A
• Welding Current at 100% Duty Cycle (40°C)                120 A
• Primary Current at 100% Duty Cycle                              25 A

MAINS CONNECTION (Single Phase, 50/60Hz, 220V)2

• Mains Cable Cross Section (Cc,Nyy) mm2                  3 x 4

MISCELLANEOUS

• Protection Class (Acc. to IEC529)                    IP21
• Insulation Class                                               F or H
• Weight                                                             4.5 kg
• Dimensions ( L x W x H)                           30 x 10 x 16 cm

Buy the MMA Welding Machine EG 200 Eigenshaft in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
