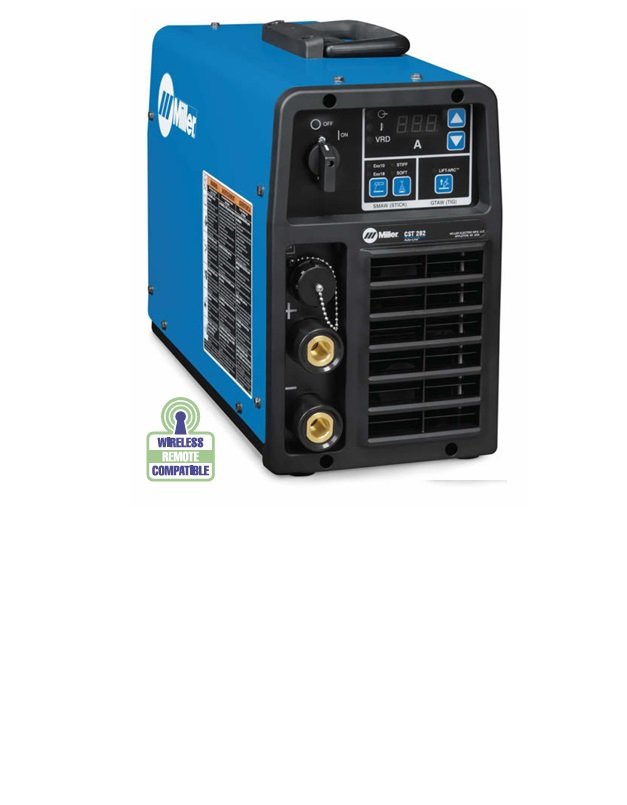

Miller CST 282 Stick/TIG Welding Machine
Welds Stick/TIG Experience superior stick arc performance with optimized settings for both XX10 and XX18 electrodes, featuring stiff and soft configurations for each. Whether you’re welding pipe or working on flat surfaces, there’s a specific setting tailored to your application.
Auto-Line™ Technology Expand your work capabilities with Auto-Line technology, which automatically adjusts the power source to function properly when connected to any primary input voltage between 208-575 volts. It supports single- or three-phase, 50 or 60 Hz, without the need for manual adjustments.
Portable and Lightweight Weighing just 34.6 pounds, the CST 282 offers easy portability around job sites, enhancing operator comfort and safety. It’s also 7 pounds (20%) lighter than the previous CST model.
Universal Connector System The new Miller-exclusive universal output connector system is compatible with both Tweco- and Dinse-style connectors. This allows welders to seamlessly switch between connector types without disassembling the machine or using adapters.
Technical Specs
| Industrial Applications | Power plant construction, Petrochemical construction, Maintenance and repair Shipbuilding |
| Processes | Stick (SMAW) TIG (GTAW) Lift-Arc™ |
| Input Power | 208–575 V, 3- or 1-phase power |
| Amperage Range | Stick: 30–280 A, TIG: 5–280 A |
| Max. Open-Circuit Voltage | 103 V DC |
| Net Weight | 34.6 lb. (15.7 kg) |
| Dimensions | H: 13.5 in. (343 mm) W: 8 in. (203 mm) D: 18.5 in. (470 mm) |
| Welding Amperage Range Stick (SMAW) |
Three- phase 30–280 A / Single phase 30–280 A |
| Welding Amperage Range TIG (GTAW) |
Three- phase 5–280 A / Single phase 5–280 A |
| Warranty | 3 Years |
Buy the Miller CST 282 Stick/TIG Welding Machine in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
