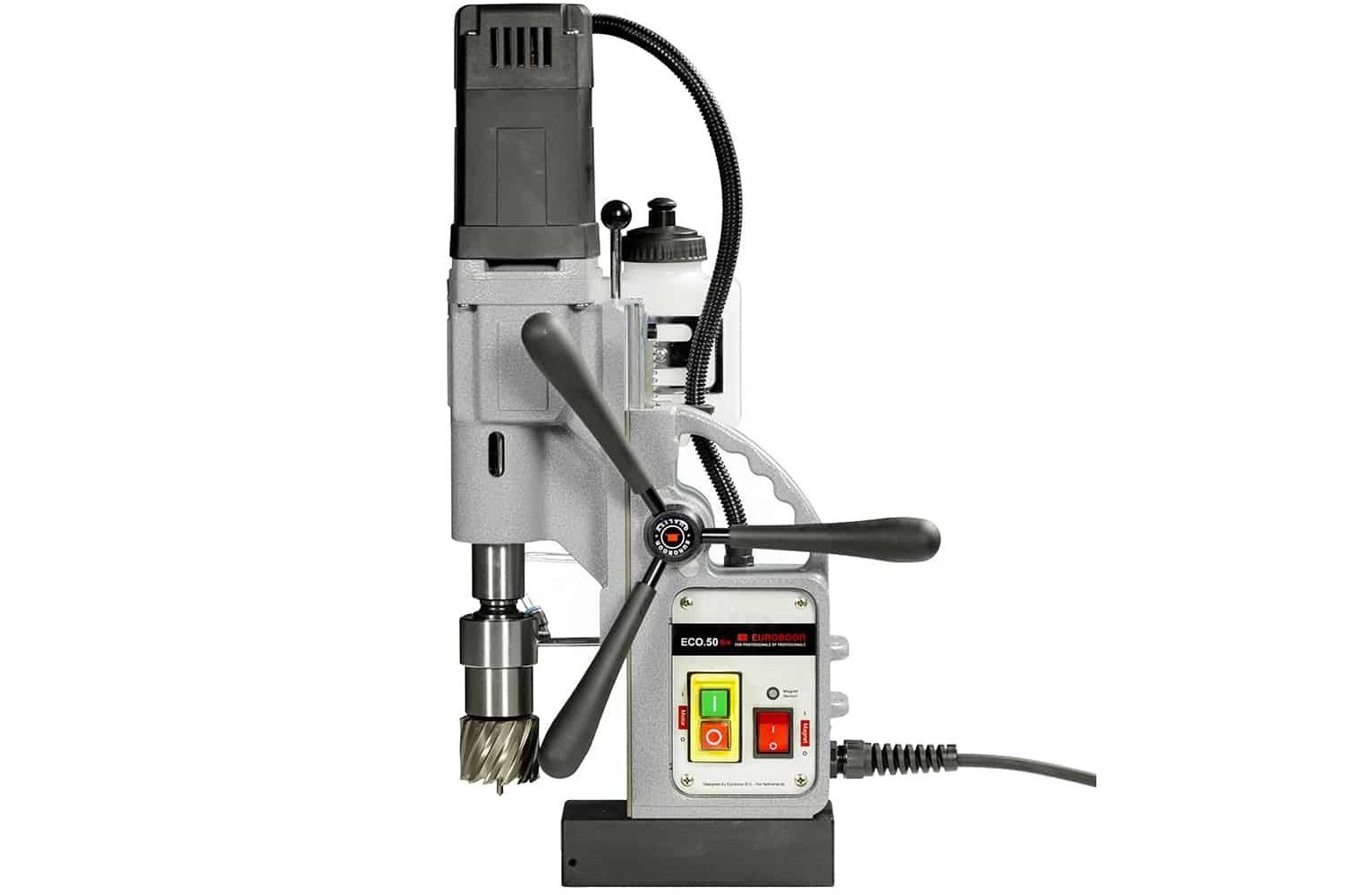

Magnetic drilling machine
Model : Eco.50s+
Ø 12 – 50 mm / 12 kg
The Euroboor ECO.50S+ magnetic core drilling machine converts maximum power through its two speed oil lubricated gearbox. This improves motor efficiency and lifetime of key components. This portable industrial magnetic core drilling machine has an integrated slide which ensures stable support, faster drilling times and more accurate hole sizing.
Additional features
- High-accuracy capstan hub
- Morse Taper 3 spindle
- Integrated slide
- Two-speed oil lubricated gearbox
- Integrated tool cooling and lubrication
- High-precision height adjustment
- Strong dual coil CNC machined 2-way magnet
- Carbon brush protection:
– Carbon brush wear indictor
– Automatic shut-off - GYRO-TEC safety
- Self-protection
– Power surge protection
– Power fluctuation protection - Magnet LED-indicator
Category: Big scale fabrication
TECHNICAL DATA
| Annular cutting | Ø 12 – 50 mm |
| Twist drilling | Ø 1 – 23 mm |
| Countersinking | Ø 10 – 55 mm |
| Length | 320 mm |
| Width | 200 mm |
| Height | 445 – 615 mm |
| Stroke | 170 mm |
| Weight | 12 kg |
| Magnet (l x w x h) | 160 x 80 x 42 mm |
| Magnetic force | 1,700 kg |
| Motor power | 1,250 W |
| Total power | 1,300 W |
| Speed (no load) | (I) 380 rpm (II) 690 rpm |
| Speed (load 1,250 W) | (I) 235 rpm (II) 415 rpm |
| Spindle (Weldon) | MT3 19.05 mm |
| Voltage | 220 – 240 V / 50 – 60 Hz |
| *Exclusive power cord and handles |
CASE CONTENT
1 x ECO.50S+ magnetic drilling machine
1 x safety guard
3 x handles
1 x hex key 2.5 mm
1 x hex key 4 mm
1 x hex key 5 mm
1 x lubrication system
1 x safety chain
1 x bottle (200 ml) of IBO.10 cutting oil
1 x arbor MT3 – 19.05 Weldon (3/4″), including lubrication ring (IMC.30/19-N)
1 x morse taper ejector drift key
1 x user manual
1 x safety ear protection
1 x safety goggles
1 x safety gloves
Buy the Magnetic drill 50mm Eco.50s+ Euroboor Holland in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
