MACSTROC MEPT-3X, PORTABLE THREADING MACHINE

MACSTROC MEPT-3X, PORTABLE THREADING MACHINE

MODEL: MEPT-3X
CAPACITY
Pipe: 1/2” -2”(6MM-100MM)
Motor: MEPT-3X is 1750W input, 1020W output, Universal 110V or 220V, 50/60Hz.
Switch: Heavy-duty paddle-type switch with safety lock off device (automatically locks off when released). Separate mechanical transmission FOR/REV switch. Reverse 3-times faster than threading.
Gear Head: Spur gear reduction/ring gear drive. All shafts, ball and needle bearing mounted. Permanently lubricated gear housing.
Gear Housing: Die cast Aluminum.
Body & Handle: Durable heavy-duty fiberglass reinforced plastic.
Spindle Speed: 28 RPM for threading, 51 RPM reverse (No load)
Die Heads: ½”, ¾”, 1”, 1¼”, 1½”, 2” (Type *11R)

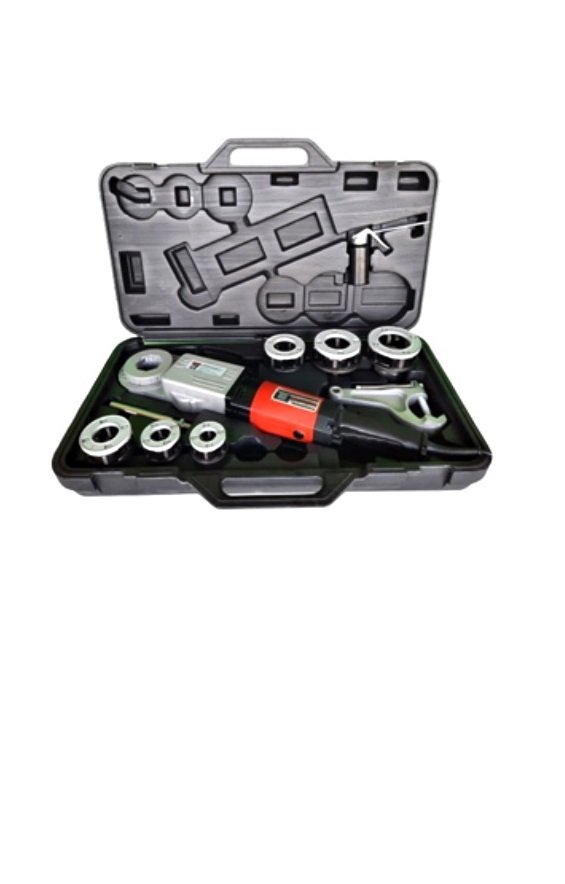

Includes support arm, carrying plastic box
Screw Threads: NPT OR BSPT
Dies Material: Alloy standard, (HSS optional)
Die Head Adapter: Used with ½” through 1¼” die heads.
weight: 8 kg (power drive) , 22Kgs complete set
Length: 76 cm

Buy the MACSTROC MEPT-3X, PORTABLE THREADING MACHINE in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
