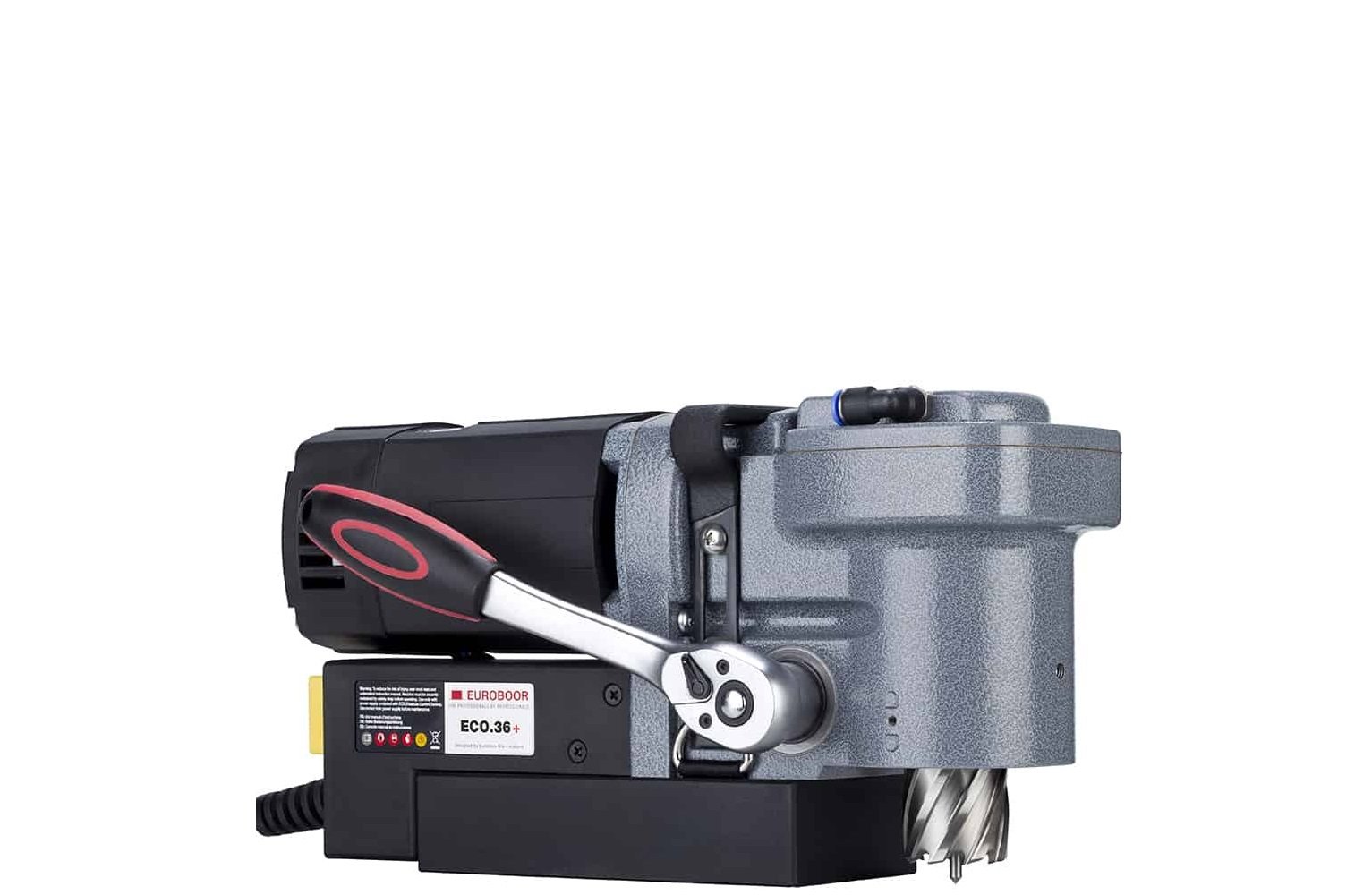

Euroboor ECO.36+
Low profile magnetic drilling machine
Ø 12 – 36 mm / 10.3 kg
The Euroboor ECO.36+ magnetic core drilling machine is the lowest drilling machine in the market, measuring only 165 mm (6 1/2″) height. This magnetic core drilling machine is perfect for drilling in spaces with limited heights such as H-beams, steel structures, plates, profiles, etc. The portable ECO.36+ is equipped with innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs
Additional features
- One-speed gearbox
- User friendly Quick-Connect cutter fitment system
- Carrying handle and safety strap attachment
- Left and right mount ability of detachable ratchet feed handle
- Integrated tool cooling and lubrication
- Removable and slideable safety guard
- Lubrication bottle with magnet attachment
- Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
- Reduced risk of damaging machine, tools and workpiece and hurting operator
- Suitable for use in areas and workplaces where power supply is of less quality
- Reduced risk of armature damage
- Reduced risk of control unit(s) damage
- Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement
TECHNICAL DATA
| Annular cutting | Ø 12 – 36 mm |
| Twist drilling | Ø 1 – 14 mm |
| Countersinking | Ø 10 – 40 mm |
| In-corner drilling | 0˚ – 50 mm (center to edge) 90˚ – 53 mm (center to edge) 45˚ – 60 mm (center to edge) |
| Length | 310 mm |
| Width | 135 mm |
| Height | 165 mm |
| Stroke | 40 mm |
| Weight | 10.3 kg* |
| Magnet (l x w x h) | 80 x 160 x 37 mm |
| Magnetic force | 1,200 kg |
| Motor power | 1,050 W |
| Total power | 1,100 W |
| Speed (no load) | 700 rpm |
| Speed (load 1,050 W) | 400 rpm |
| Spindle (Weldon) | 19.05 mm |
| Voltage | 220 – 240 V / 50 – 60 Hz |
| *Exclusive power cord and handle |
Buy the Low Profile Magnet Drill Machine ECO.36+ EUROBOOR in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
