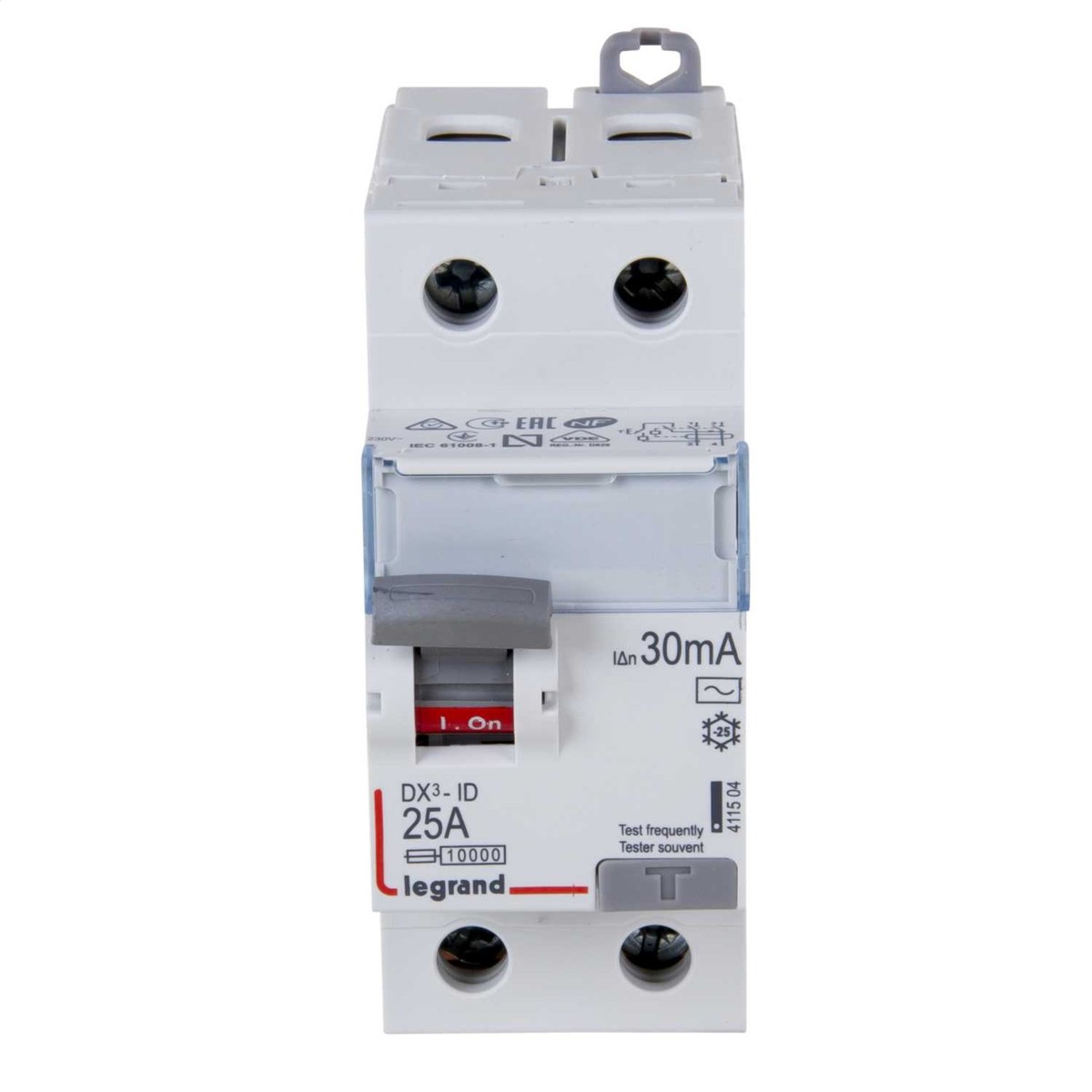

LEGRAND, RCD Circuit Breaker 25 A, 30 mA Residual Current Circuit Breaker/RCD, 2-Pole – 25 A/30 mA, 402036

Brand Legrand
Current rating 25 Amps
Product dimensions 78D x 36W x 89H millimeters
Circuit breaker type RCD
Mounting type DIN Rail Mount
About this item
Use: the RX³ residual current circuit breaker type A is used to detect alternating and pulsating DC fault currents according to VDE 0664-10, EN 61008-1. It is undelayed and guarantees increased operational safety due to reduced false triggering.
Installation: you are granted easy attachment of the circuit breaker with 2 division units (TE) on hat profile rails of the standard EN 60715 by snap-action quick fasteners.
User-friendly display: the residual current circuit breaker shows clear information on the front of each device and is equipped with a marking of the on/off switch setting with labelling field.
Note: The attachment of auxiliary equipment is not possible.
Technical data: 2-pole, type A, rated current in 25 A, rated residual current Idn 30 mA, rated voltage Un 230 VAC, rated frequency 50 Hz, shock current resistant up to 250 A, rated short circuit current 10 kA with suitable fuse type, item no. 402036
