Features: –
- ·
Consist of basic frame, milling cutter, heating
plate, hydraulic unit, support.
- ·
Working environment must be between -40Co +
40Co
- ·
Pressure adjustable range: 0-6Mpa
- ·
Heating plate Max. temperature: 270o C
- Suitable for material of PE, PP, PVDF.
Technical Data: –
| Model | HDC 250 |
| Pipe size (mm) |
63mm, 75mm, 90mm, 110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm, 250mm. |
| Heating plate Max. Temp |
270oC |
| Temp Deviation in surface (170-250) |
5OC |
| Max tolerance of welding jointing |
0.3mm |
| Max working pressure hydraulic station |
6Mpa |
| Working voltage |
220V |
| Working frequency |
50-60Hz |
| Motor power/ Voltage of hydraulic station |
0.75KW/ 220V |
| Power/ Voltage of heating plate |
2KW/ 220V |
| Power / Voltage of milling cutter |
1.2KW/ 220V |
| Total power |
3.95KW |
| Overall weight of machine (KG) |
148KGS |

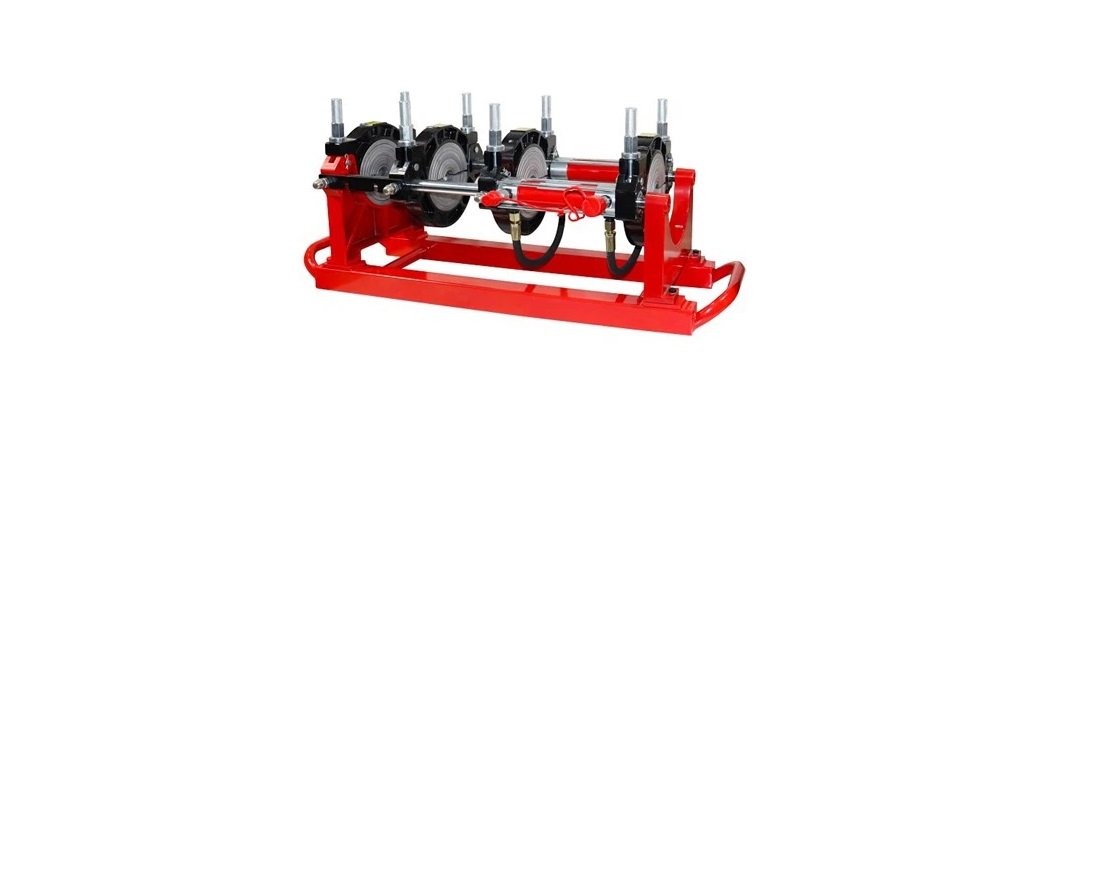

Buy the HDPE Welding Machine HDC 250 upto 250mm in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
