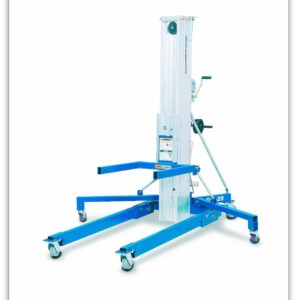

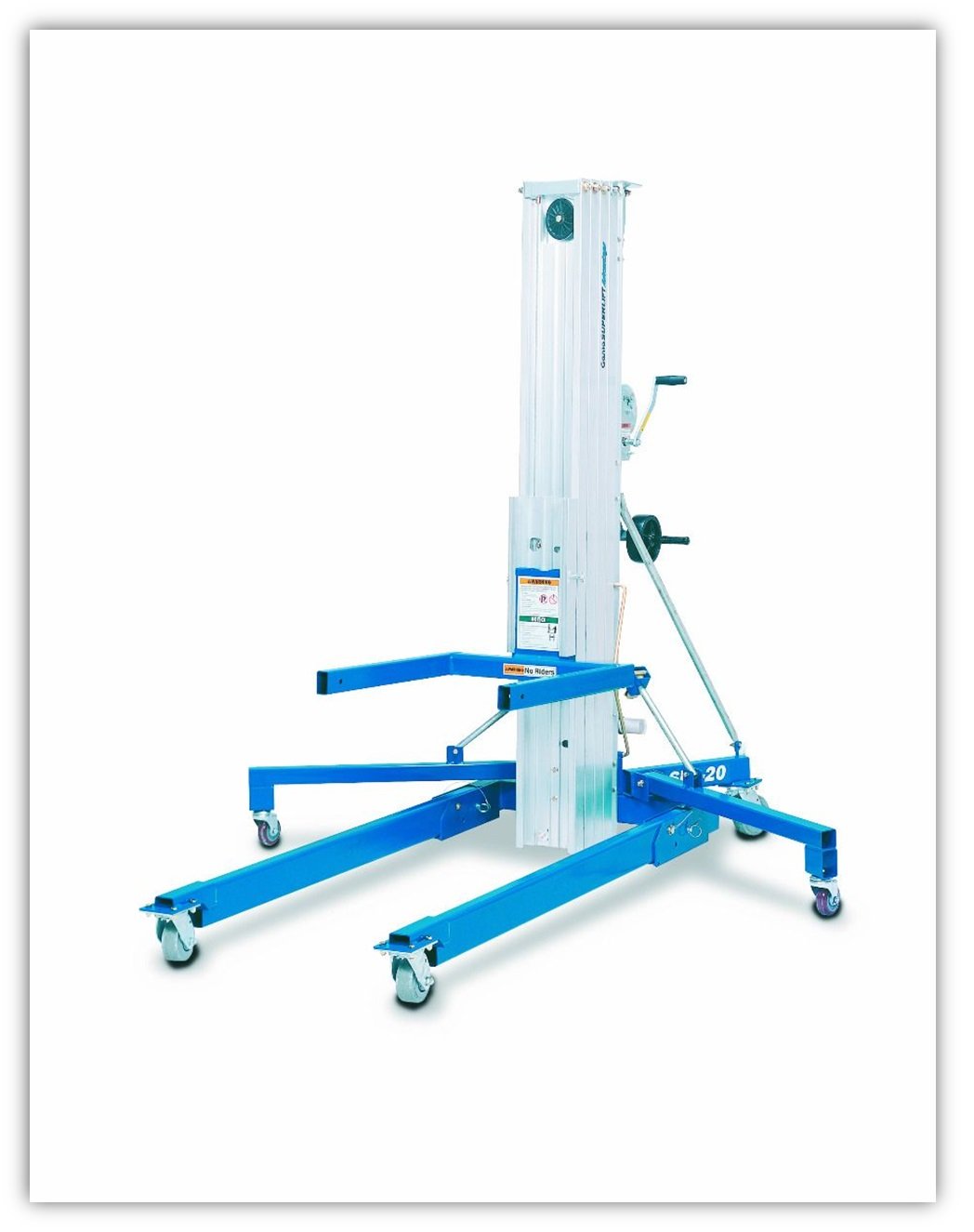

The Genie Material Lift SLA 20 is designed to assist with lifting and positioning heavy loads in various industrial and construction settings. It’s commonly used for tasks such as lifting and installing HVAC equipment, lifting heavy machinery, or positioning building materials like steel beams or ductwork.
Features
Easily configured to meet your needs
Fork Options
- Standard Forks
- Adjustable forks
- Fork extensions
- Boom
- Pipe cradle
- Load platform
Power options
- One speed manual winch
- Two speed manual winch
Base options
- Standard base
- Stablizer set
Caster & Brake options
- Rear transport wheel assembly
Standard Features
SLA-20
- 21ft 2.5 in(6.46m) maximum lifting height
- Up to 800lb (363kg) load capacity
Power
- One speed manual winch
Specification
MODEL : SLA-20
| MEASUREMENTS | US | METRIC |
| Working Height | ||
| Standard Forks – Down | 19ft – 6in | 5.94m |
| Standard Forks – Up | 21ft -2.5in | 6.46m |
| Adjustable Forks – Down | 19ft – 6in | 5.94m |
| Adjustable Forks – Up | 21ft -2.5in | 6.46m |
| Flat Forks | ||
| Boom | 20ft – 6in | 6.25m |
| Load Platform – Forks down | 19ft – 6in | 5.94m |
| Load Platform – Forks Up | 21ft -2.5in | 6.46m |
| (A) Height – Stowed | 6ft – 6.5in | 1.99m |
| (B) Length – Stowed | 2ft – 5in | .74m |
| (C) Length – Operating | 6ft – 10in | 2.08m |
| (D) Width – Stowed – with stabilizers lowered | 2ft – 7.5in | .80m |
| Width – Straddle base | 6ft – 1in | 1.85m |
| minimum | ||
| maximum | ||
| maximum inside | ||
| Ground clearence – center | 2in | .05m |
| Load height minimum | 6in | .15m |
Productivity
Load capacity
| 18in (46 cm) load center | 800lbs | 363kg |
| 24in (61cm) load center | 600lbs | 272kg |
| 42in (107cm) load center | 350lbs | 159kg |
Power
Average cranks :
| Standard winch | 8.5 cranks/ft 27.8 cranks/m |
Weight
| Standard | 405lbs | 184kg |
| Straddle base |
Productivity
- Heavy duty design
- Patented telescoping mast system
- Capative stablizer set
- Rolls easily through single door in upright position
- Quick set up requires no tools
- Interchangable load handling attachments
- Maneuverable 4 in ( 10cm) front casters and 5 in 1 (13cm) rear casters, with 4-ways swivel locks and side brakes, are standard
- Compact design, legs fold up for easy storage
- Roller wheels allow easy transport in stowed position
- Easy to load and unload on or off avehicle transport
- Hold-down bar secures mast assembly durong transport
Buy the GENIE MATERIAL LIFT SLA-20 in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
