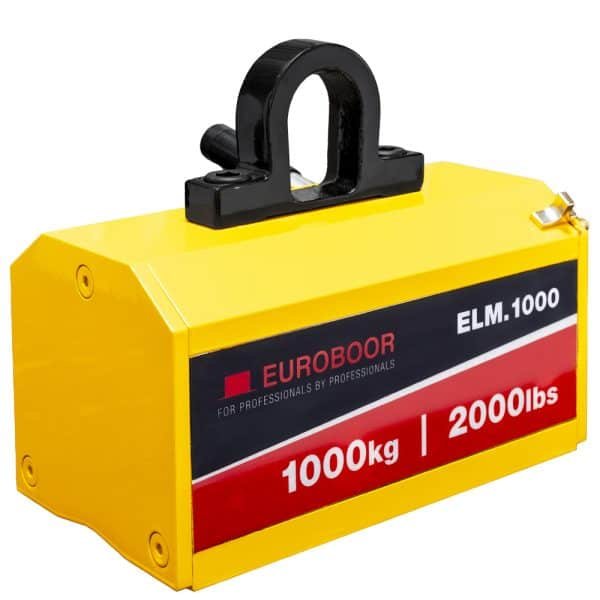

Euroboor Lifting Magnets

Specifications

MetricImperial

Model	ELM.125	ELM.250	ELM.500	ELM.1000	ELM.2000
Dimensions (l x w x h)	175 x 76 x 134 mm	213 x 82 x 160 mm	288 x 112 x 195 mm	336 x 148 x 234 mm	559 x 154 x 295 mm
Ø of eye	30 mm	40 mm	42 mm	52 mm	52 mm
Weight	6.5 kg	9.4 kg	21.2 kg	43 kg	95.2 kg
Workload Limit flat material	125 kg	250 kg	500 kg	1,000 kg	2,000 kg
Workload limit round material	60 kg	125 kg	250 kg	500 kg	1,000 kg
Plate minimal thickness	15 mm	25 mm	30 mm	40 mm	55 mm
Ø min/max	40/80 mm	50/100 mm	100/250 mm	150/380 mm	180/450 mm
Max working temp.	80 °C	80 °C	80 °C	80 °C	80 °C

Buy the Euroboor Lifting Magnets in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
