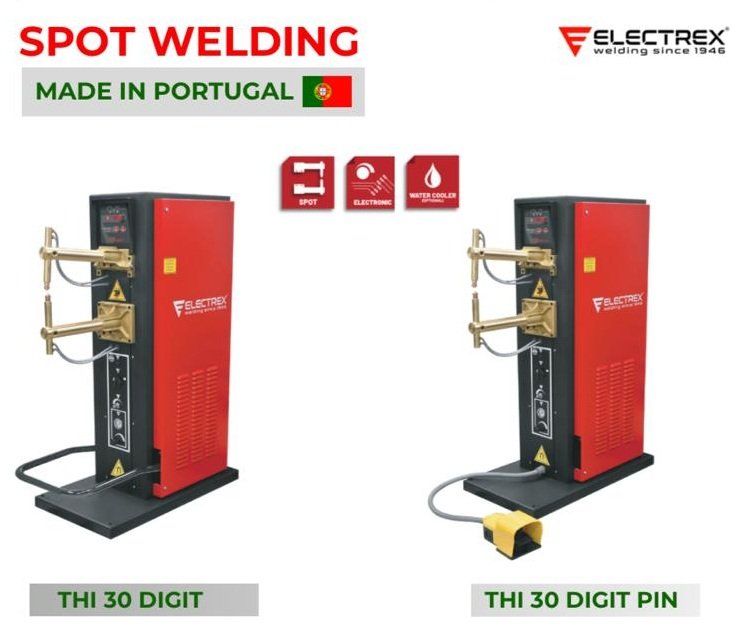

ELECTREX PORTUGAL SPOT WELDING MACHINE WITH PEDAL MODEL: THI 30 DIGIT PIN
TECHNICAL SPECS: –
| Input voltage | Standard: 400V (+/-10%) Optional: 230V (+/-10%) |
| Frequency | 50/60 Hz |
| Fuses | 40A |
| Power | Max. 30kVA |
| Power | 14kVA |
| Welding capacity (mm / Ø mm) | Steel: 1+1 – 5+1.5 Stainless steel: 2.5+2.5 – 8+8 |
| No-load voltage | 1.3–4V |
| Short circuit current |
11kA |
| Max. electrode pressure (6bar – 7bar) (450mm) | 200 daN |
| Electrode opening | 30mm |
| Distance between arms | Standard: 200mm Optional: 320mm |
| Arms length | Standard: 340–480mm Optional: 200–1000mm |
| Arms diameter | Ø45mm |
| Electrode holder diameter | Ø25mm |
| Electrode diameter | Ø20mm |
| Noise level | <70dB |
| Air pressure | 4–8bar |
| Water flow | 4lit/min |
| Max. rate | 172/min |
| Weight (kg) | 160 / 162 |
| Dimensions (HxWxL) | 1280x450x1050 |
Buy the ELECTREX SPOT WELDING MACHINE MODEL: THI 30 DIGIT PIN in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
