Technical Specs: –
| Pressure range | 0.5～1.4 |
| Free air delivery range | 25.5～21.2 m3/min |
| Type | Rotary Twin Screw, Single-Stage, Oil-cooled |
| Operating pressure | 1.4 MPa |
| Compressor oil capacity | 82L |
| Air outlet valve | 2”×１, 3/4”×2 |
| Engine Maker/Model | HINO J08E-UK |
| Type | Direct-Injection, Turbo-Charged, Intercooled |
| Total displacement | 7.684L |
| Rated output | 197(268)/2,100 kW(PS)/min-1 |
| Speed range | 1,300～2,350 min-1 |
| Fuel tank capacity | 400L |
| Engine oil capacity | 28.5L |
| Coolant water volume | 37L |
| Battery | 170F51×2 |
| Length×Width×Height | 3,830×1,730×2,325 |
| Dry (Operation) Weight | 3,410 (3,870) KG |
| Sound power level in decibels | 102 |
| Emission control | JPN Stage 3 |

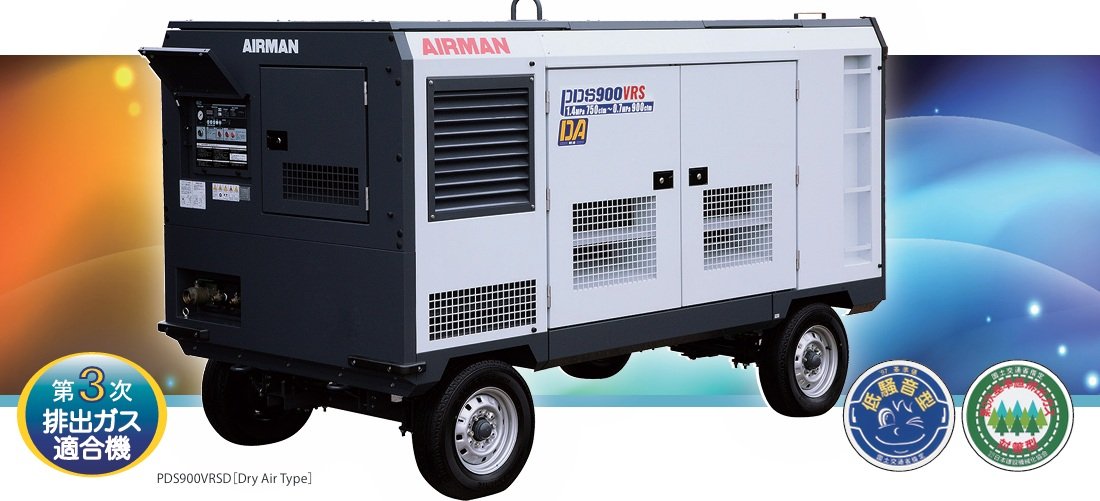

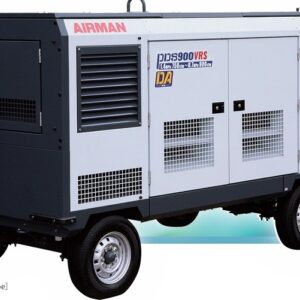

Buy the Airman PDS900VRS High Pressure Air Compressor in Abu Dhabi, UAE from Tiny Royal General Trading — a trusted and leading material supplier in the UAE.
